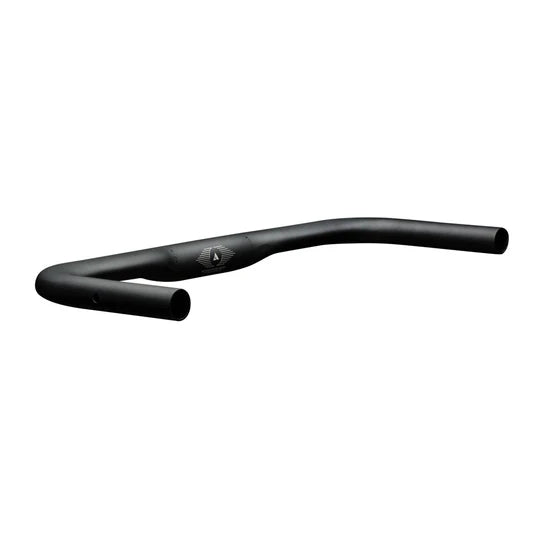

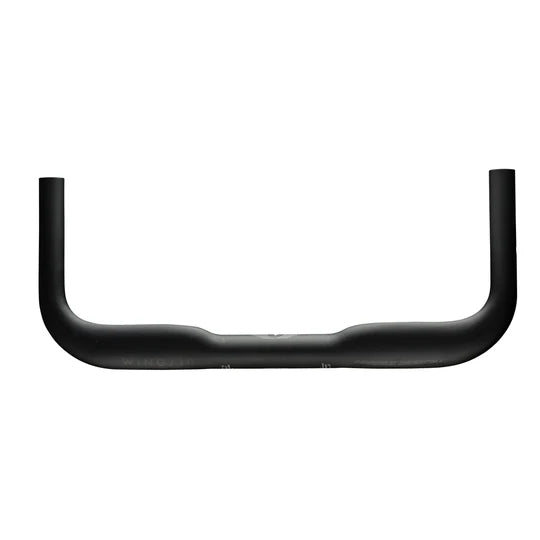

Profile Designs - WING/10a Base Bar - 42cm

Description:

The WING/10a Base Bar delivers customizable fit through its innovative flippable design, enabling riders to adjust grip height by 10mm to match their preferred riding position and comfort level. Engineered with a truncated Kamm Tail airfoil that respects UCI regulations while maximizing aerodynamic efficiency, this 42cm bar features refined cable routing and a streamlined underside for measurable performance gains. Lower positioning enhances separation from armrests for optimal aero benefits. Ideal for riders seeking precision tuning and competitive edge.

Specifications:

Fit Data

• The WING/10a is available in the following widths: 36, 38, 40, 42, 44
• The straight hand grips are part of the flippable design that allows the grip height to be modified by 10mm. The grip length can also be trimmed by up to 30mm.
• The WING/10a offers the greatest fit versatility of any alloy basebar we’ve previously made, allowing the rider to fine tune for their riding style and comfort preferences.
• An additional reason for the truncated design of the wing was to improve hand comfort when sitting up on the bar tops

Accessories

The WING/10a can be used with any Profile Design clip-on aerobar, brake lever and stem option.

Tech Specs

• Weight: 265g (38cm)
• Width: 36, 38, 40, 42, 44cm (center to center)
• Center Clamp Diameter: 31.8mm
• Clamp Width: 100mm (on all bar sizes)
• Clip Compatible: Yes
• Material:  6061-T6 AL
• Finish: Matte Black
• Pursuit Reach: 160mm (center to tip)
• Grip Offset: ± 5mm
• Pursuit OD/ID: 23.7 / 20.3mm
• Drop Out sweep: No

Tech Guide

• Maximum cut distance on grip: 30mm
• Grip Stack High position: 15.9mm
• Grip Stack low position: 5.9mm
• Only compatible with internally routed brake levers
• Di2 Compatible
• UCI 3:1 compliant
